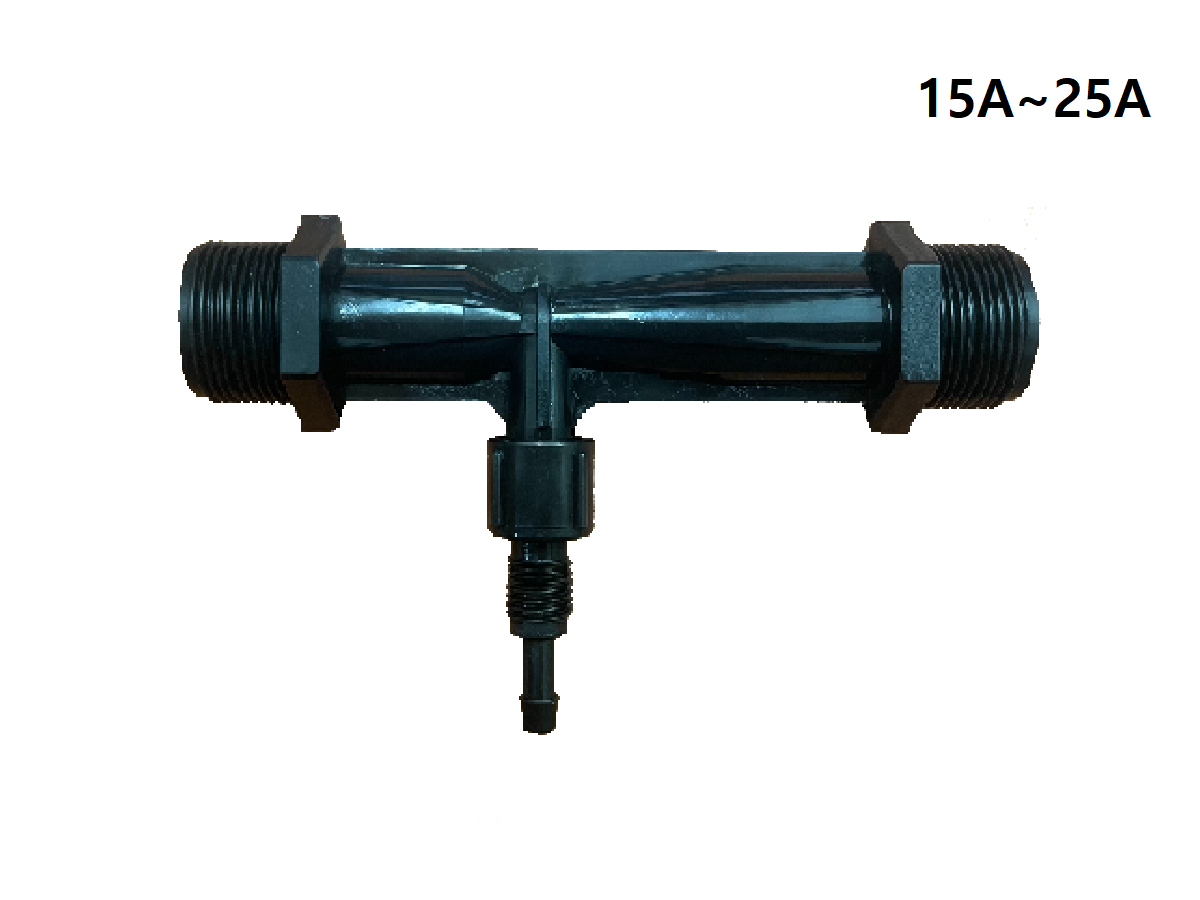

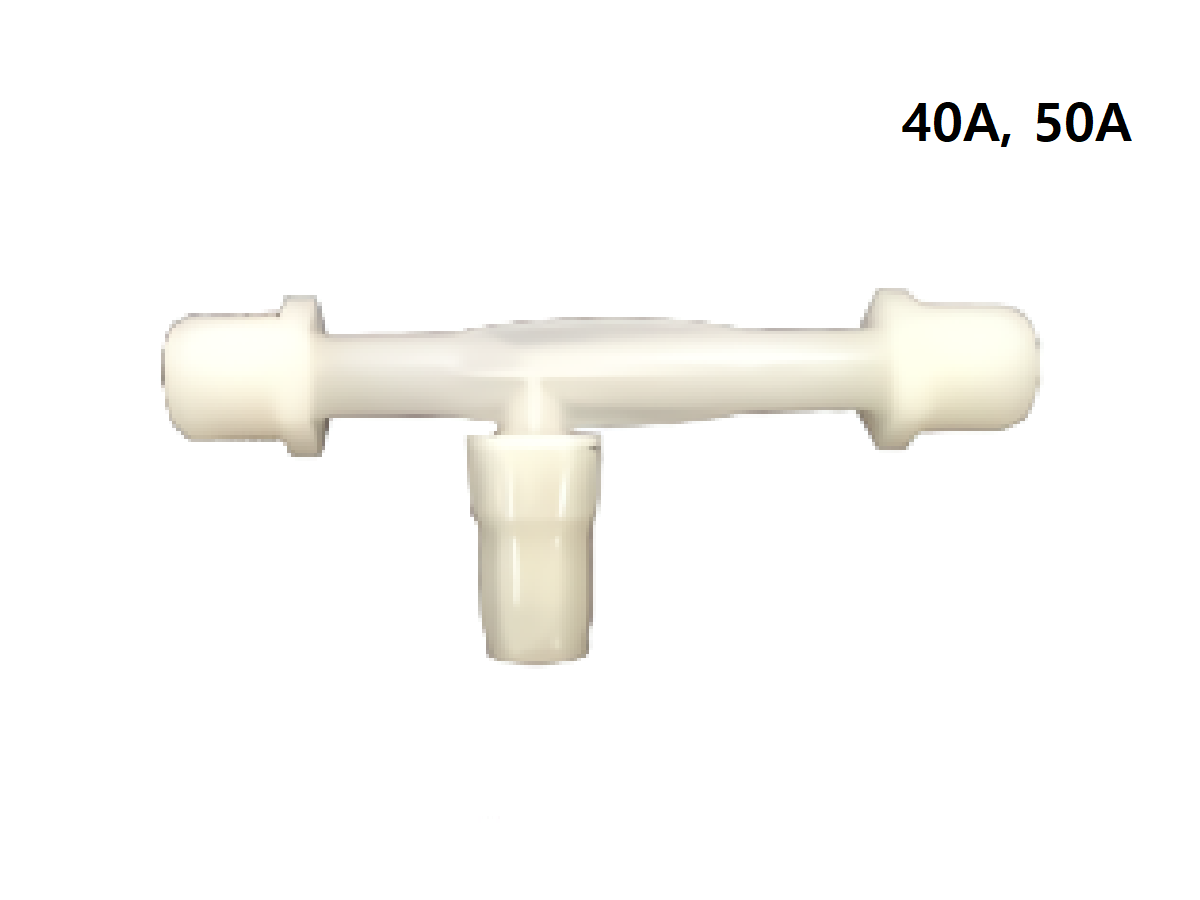

PVDF Injector (15A ~ 50A) > 기타

MODEL

PVDF Injector

규격

15A

20A

25A

40A

50A

오리피스 직경(mm)

4

7.5

10

13.6

22.1

Inlet/Outlet

0.5"

0.75"

1"

1.5"

2“

Suction port

0.25”

0.5”

1.25”

Inlet Pressure (kg/㎠)

2.5 ~ 4

2.5 ~ 5

2.5 ~6

3 ~7

Motive Flow (ton/h)

0.1 ~ 1

1 ~3

3 ~ 10

10 ~ 25

30 ~ 50
